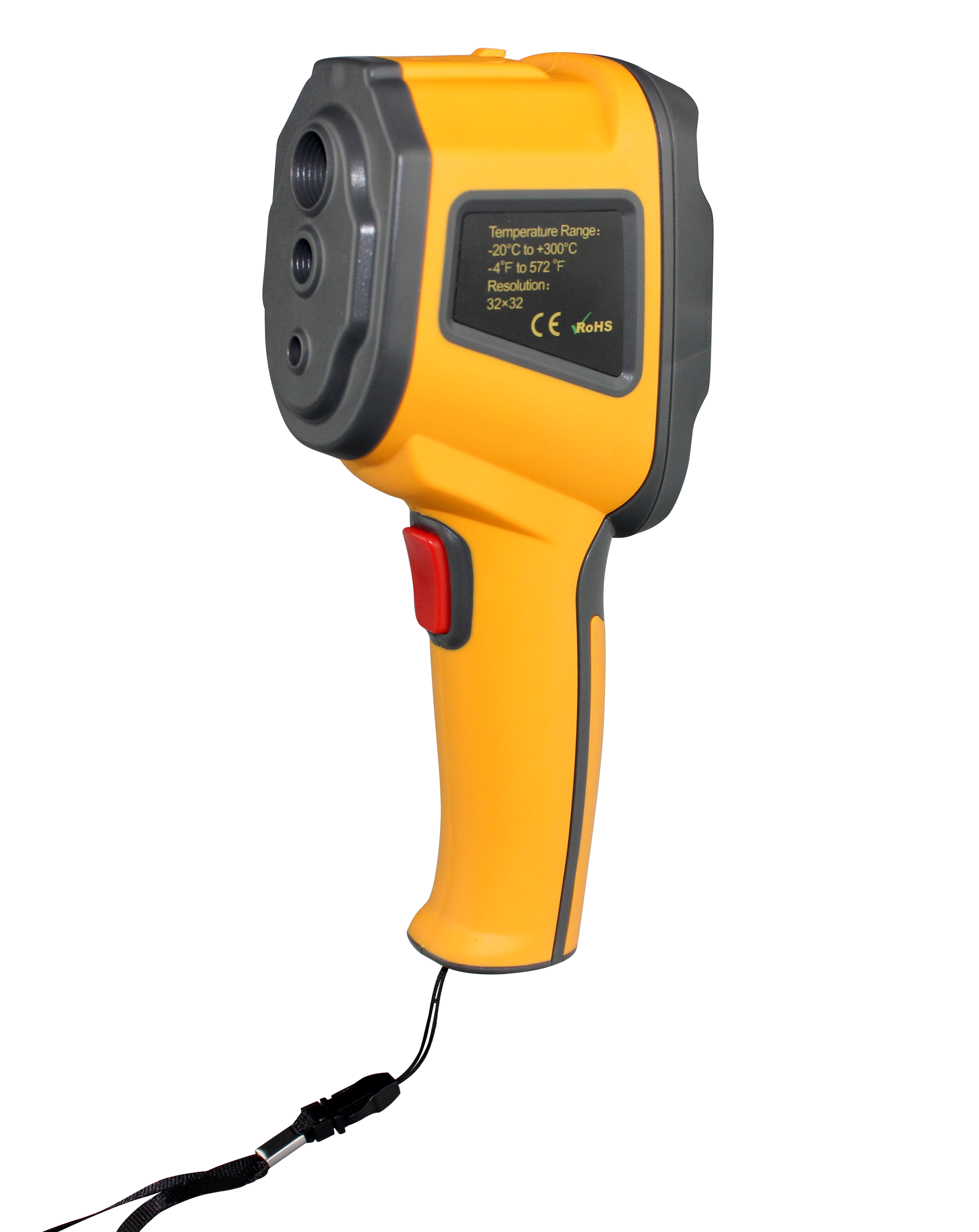

HT 02D
Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection,archaeology,transportation,agriculture and geology. It is an ideal choice for electricians and mainte nance technicians to quickly locate problem areas.
Field angle/focus length：33°× 33°/ 0.5m
Wavelength coverage：8~11.5μm
Center point/hot and cold spot tracking
32-Pixel Array Imaging, Smart 5-Color Display, Effortless Temperature Measurement!
The HT 02D features a 32×32 basic-resolution infrared sensor with five color palettes (Rainbow, Iron, High-Contrast Rainbow, White Hot, Black Hot), utilizing intelligent algorithms to optimize imaging. Designed for daily temperature measurement applications, it serves as an entry-level thermal tool for household electrical inspections and small equipment maintenance.
infrared thermogram

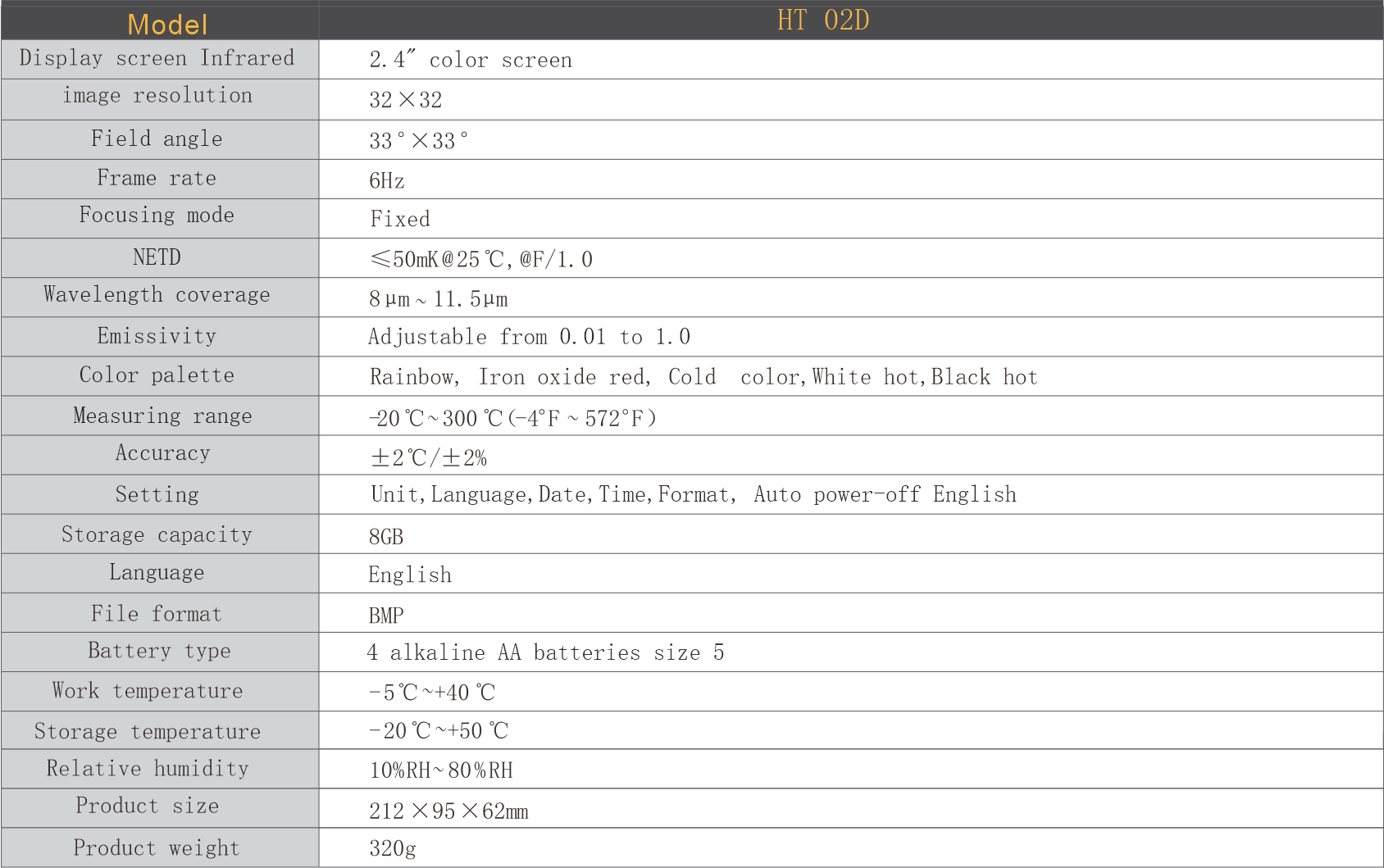

Technical Parameter
